PSI Model FW Fire Resistant End Seals

Developed exclusively for situations involving a need for fire retention, Model “FW” end seals are especially useful in tank farms and fire wall applications.

Description

PSI Model FW Fire Resistant End Seals

Model FW Fire Resistant End Seals have been developed for applications specified as fire prone areas such as tank farms or pipes passing through fire walls. They are ordered to customer supplied specifications so they may be used for any size casing/carrier differential.

These seals are excellent for eliminating the possibility of foreign material entering the opening between carrier and casing pipes.

Included with Model FW End Seals are two appropriately sized hose clamps which are used to secure the rubber material around both carrier and casing pipes. Installation is quick and easy with only a screw driver needed for tightening the hose clamps.

Benefits and Features

  • Custom made to order.
  • Quick and easy installation.
  • Screwdriver is only tool required for installation.
  • Carrier pipe does not need to be centered inside casing.
  • Designed to last for the life of the piping system.
  • Heavy duty hose clamps provided.

Typical Application

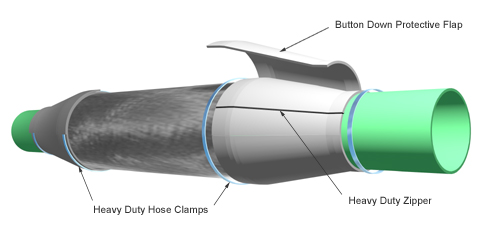

PSI End Seal Model FW Typical Application

PSI Model FW Fire Resistant End Seals

PSI End Seal Model FW

Installation

Contact Allied Corrosion Industries, Inc. for installation details.

How to Order

To order Model FW End Seals, please indicate the following:

  1. Quantity
  2. Carrier Pipe O.D.
    (Type and coating thickness if applicable.)
  3. Casing Pipe O.D.
    (Type and coating thickness if applicable.)

Warranty

Manufacturer’s warranty statement will be supplied upon request to Allied Corrosion Industries, Inc.

Typical Specification

Model FW fire resistant; end seals shall be made of a dual layer fiberglass material with a proprietary expendable neoprene/latex coating, manufactured by PSI-Pipeline Seal and Insulator, Inc., Houston, TX. to ISO 9001:2000 standards. Contact Allied Corrosion Industries, Inc. for specification details.
